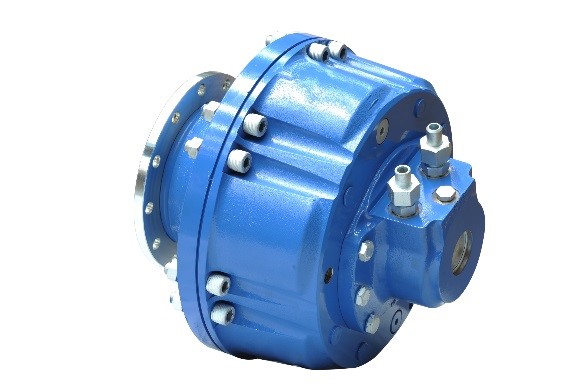

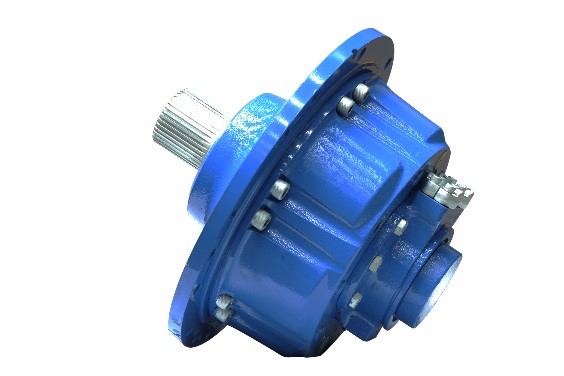

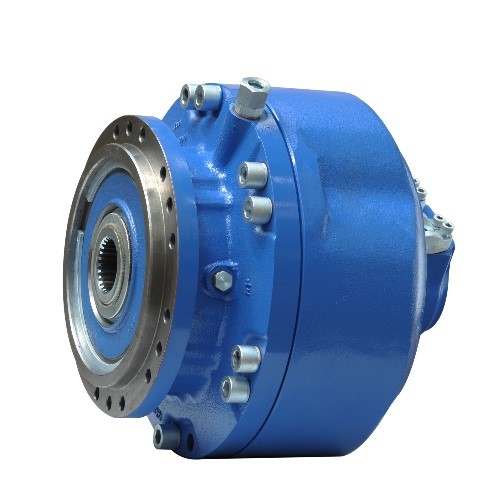

High Torque Low Speed Motors
All Products- Pictures
We manufacture HTLS motors which can deliver very high torque at low speeds.
Specification
| H15 | H20 | H25 | ||
|---|---|---|---|---|
| Full Displacement | cc/rev | 1130 | 1979 | 3122 |
| Small Displacement | cc/rev | 565 | 990 | 1561 |
| Torque at 400 bar | Nm | 7190 | 12580 | 19860 |
| Torque at 100 bar | Nm | 1797 | 3147 | 4964 |
| Max. Power | KW | 52 | 75 | 100 |
| Max. Speed | rpm | 146 | 120 | 100 |
Variants
- Bearing or Shaft Motor
- Torque Motors
- Compact Motors
- Wheel Motors
Options
- Static Parking Brake
- Dual Displacement
- Splined /Keyed shafts
- Free wheeling
Typical Applications
- Compactors - For Wheel & Drum Drive
- Blast Hole Rigs - For Wheel Drive and Mast Operation
- Hydraulic Excavators - For Track Drive
- Hydraulic Winches
- Mining & Material Handling Equipment
